B&C Speakers Coaxials HF1.4" DCX354 8Ohm & FB354V2 Crossover

Description

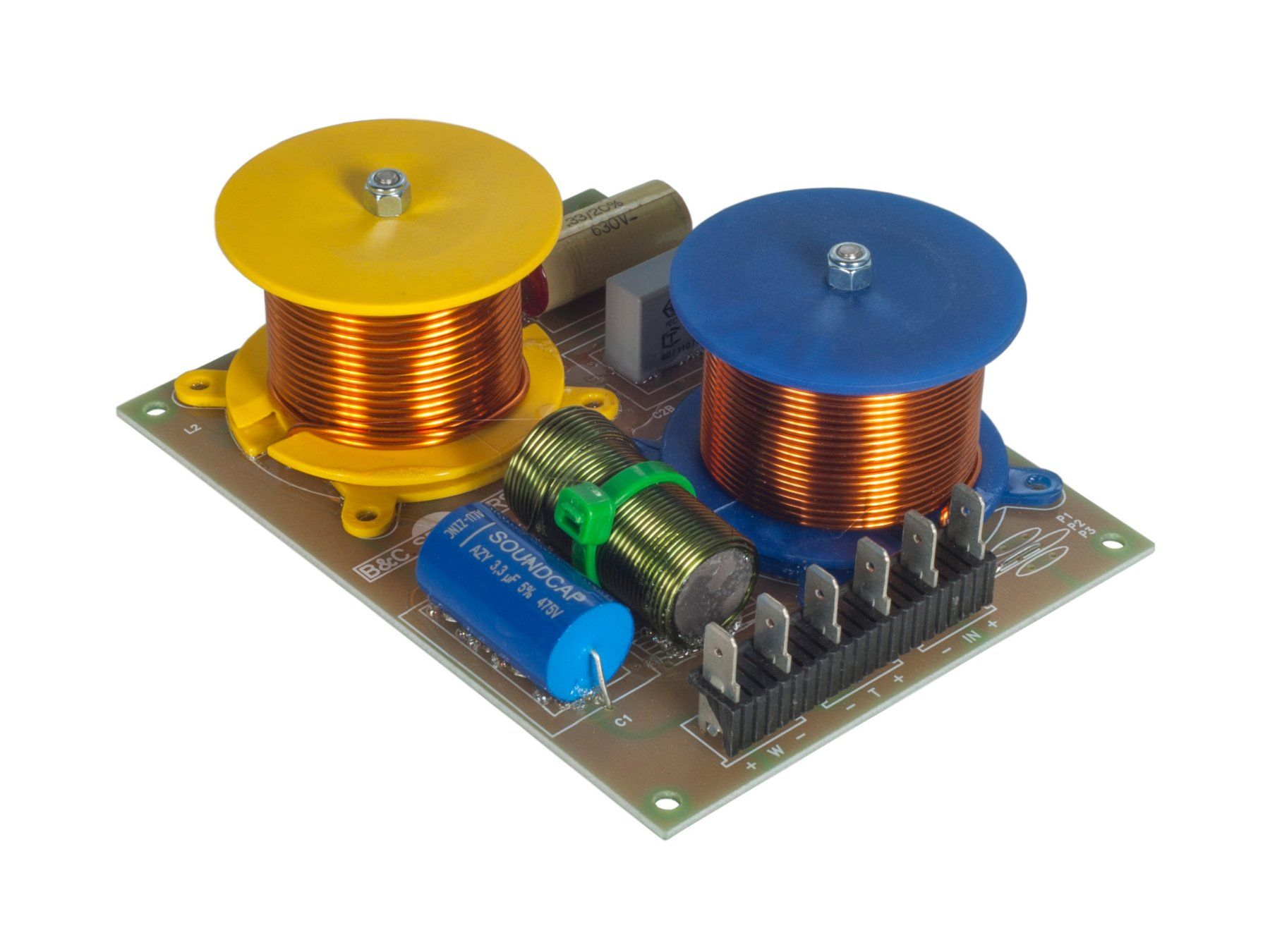

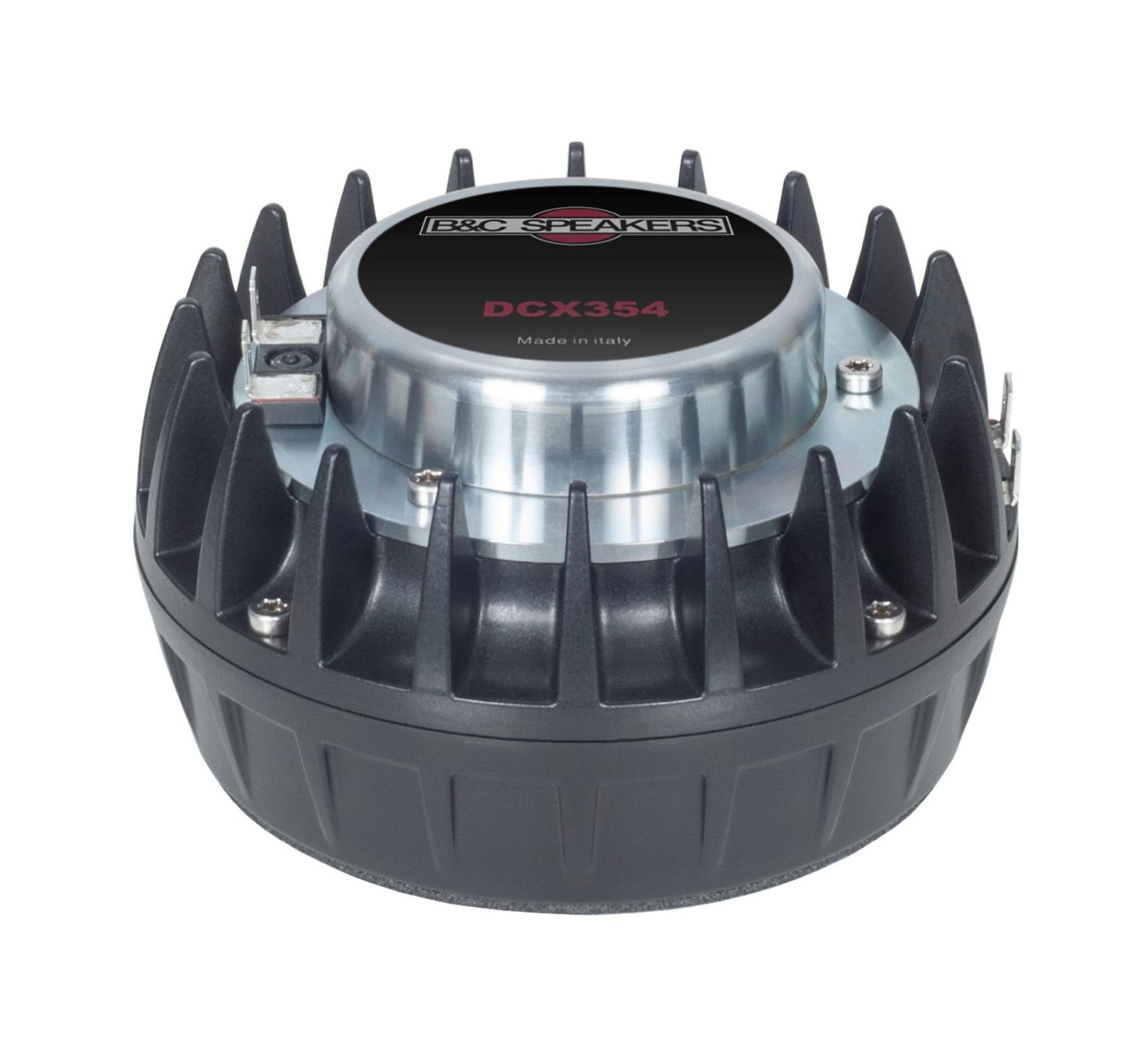

1x B&C DCX354 8Ohm inkl 1x FB354V2 CrossoverModern speaker arrays demand closer source spacing, higher output, and lighter weight. To meet this continuing challenge, B&C Speakers introduces the DCX354 coaxial ring radiator.The DCX354smidrange diaphragm covers 400Hz 6kHz with 111.1 dB sensitivity. Extended low-frequency bandwidth is thanks to a patented diaphragm shape (US Patent #12156006) which progressively decouples the outer diameter as frequency rises. The 76mm (3 inch) midrange voice coil handles 180watts, while the 51mm (2 inch) voice coil high frequency diaphragm covers 5 20kHz with 112.8 dB sensitivity and handles 100watts. A redesigned, patented midrange integrator (US Patents #11683636/11343608) allows both diaphragms to work in harmony over a wide bandwidth,forgreater combined output and crossover flexibility. All this energy arrives at a 1.4 throat, from the mostcompact package that can be designed today.In order to offer more than just a smaller version of an existing product, we wrote new mathematic modeling techniques from scratch - pioneering a method to evaluate dozens of potential diaphragm shapes in a day. Field experience and customer testing led to dozens of improvements and redesigns. Testing in unusual use cases and with compound loading led to a more compact product with nearly the same output and durability as the original. Experience un-fatiguing sound at levels you didnt think possible with the DCX354 coaxial ring radiator.FB354V2 8Reinforced PRO version of the popular FB354 crossover, for more challenging applications. The FB354v2 shares the same circuit diagram of the FB354, substituting inductors with higher power ratings and eliminating the built-in light bulb protection network. The FB354v2 allows the user more control to optimize DSP limiter settings for higher maximum SPL while maintaining a safe work margin for the DCX354.
